Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 600Lbs (280KG) and significant features.

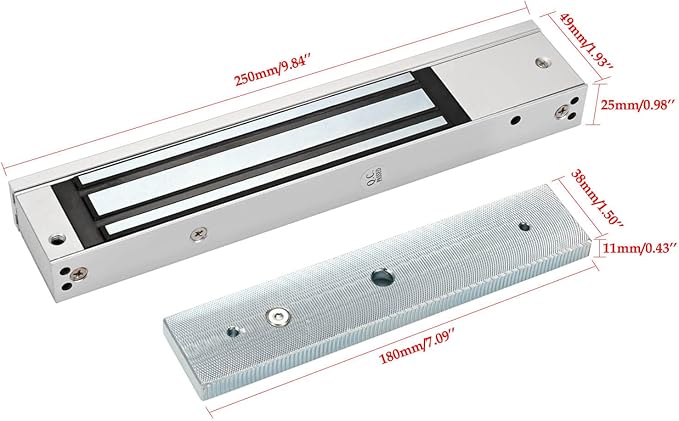

Size: The lock size is 9.84 x 1.93 x 0.98 inch (250 x 49 x 25mm); Armature plate: 7.09 x 1.50 x 0.43 inch (180 x 38 x 11mm). Holding Force: 600LBS (280KG).
Mode: NC Mode (Fail-Safe Mode), Locked whilst power supply is operating, unlocked when power off; Voltage: DC12V.
Security protection: This electromagnetic lock has safety function. It is built in voltage spike suppressor.

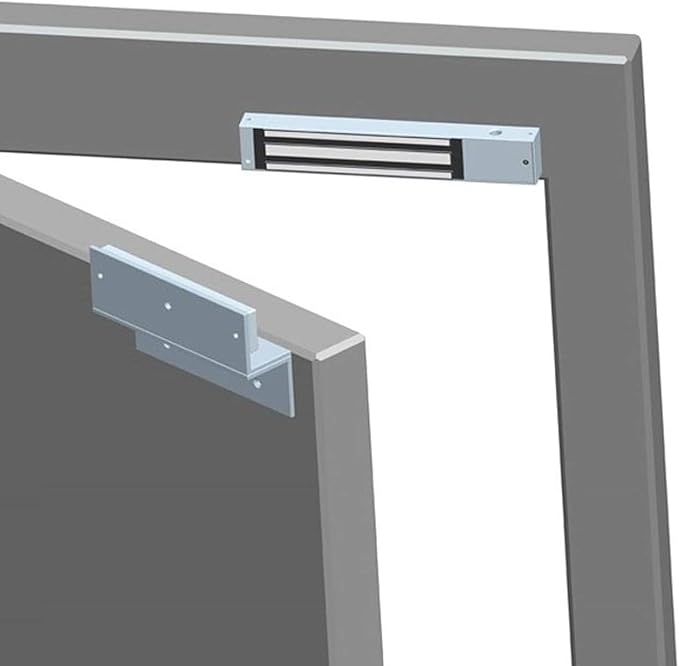

Wide Applications: This electric magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.
Overview
Brand : YUANWIN
Special Feature : Voltage Spike Suppressor
Lock Type : Electromagnetic Lock
Item dimensions L x W x H : 10 x 2 x 1 inches
Material : Stainless Steel, High Strength Aluminum
